Application of stable isotope probing to identify temperature responsive bacterial taxa at the level of 3-hydroxy fatty acid synthesis: Time T0, T14, T28
in progress
collaboration
Authors
Affiliation
Olivier Rué
Migale bioinformatics facility
Christelle Hennequet-Antier
Migale bioinformatics facility
Published
November 22, 2023
Modified
February 19, 2025
Note
This document is a report of the analyses performed. You will find all the code used to analyze these data. The version of the tools (maybe in code chunks) and their references are indicated, for questions of reproducibility.
Aim of the project
The aim of the project is to provide a better understanding of how soil bacteria respond to temperature variations at the membrane level. Bacterial lipids can be used in paleoclimatology to reconstruct temperature of past climates in marine and terrestrial archives. This involves the use of proxies and calculations that are based on the relative amounts of these lipids. In soil, only one organic proxy is available, mainly due to the difficulty to work on soil, which is much more heterogeneous in structure than aquatic environments. A drawback of this sungle proxy is the error which is associated with it as well as the lack of confirmation of the result by a different approach. A new proxy based on 3-hydroxy fatty acids has been proposed in 2016. To better understand and validate this proxy, as well as to investigate new more precise proxies, we aim at understanding what soil bacterial species contribute to the proposed proxy by investigating their response te temperature at the taxonomic and lipid levels. We have used a DNA- and lipid-SIP approach during a time-course experiment and are now at the stage of analyzing what species have used the 13C labelled substrate in a temperature dependent manner. The profile of the enriched taxa in the 13C fraction will be compared in the different samples (different temperature, different incubation time) and will be compared with the 13C-enriched lipid profiles in the same samples.
Deliverables agreed at the preliminary meeting (Table 1).
Table 1: Deliverables
Definition
1
HTML report
Data management
Important
All data is managed by the migale facility for the duration of the project. Once the project is over, the Migale facility does not keep your data. We will provide you with the raw data and associated metadata that will be deposited on public repositories before the results are used. We can guide you in the submission process. We will then decide which files to keep, knowing that this report will also be provided to you and that the analyses can be replayed if needed.
Biostatistics
The phyloseq package[1] is a tool to import, store, analyze, and graphically display complex metabarcoding data, especially when there is associated sample data, phylogenetic tree, and/or taxonomic assignment of the OTUs or ASVs. Various customs functions written to enhance the base functions of phyloseq are available in the phyloseq-extended package[2].
[[1]]
[1] "1] Min. number of reads = 10643"
[[2]]
[1] "2] Max. number of reads = 48037"
[[3]]
[1] "3] Total number of reads = 4010689"
[[4]]
[1] "4] Average number of reads = 29708.8074074074"
[[5]]
[1] "5] Median number of reads = 31149"
[[6]]
[1] "7] Sparsity = 0.218730882381593"
[[7]]
[1] "6] Any OTU sum to 1 or less? NO"
[[8]]
[1] "8] Number of singletons = 0"
[[9]]
[1] "9] Percent of OTUs that are singletons \n (i.e. exactly one read detected across all samples)0"
[[10]]
[1] "10] Number of sample variables are: 9"
[[11]]
[1] "Time" "Temperature" "SampleID"
[4] "Replicate" "FractionOnCsClGradient" "Glucose"
[7] "Time_Gluc" "Group" "SampleLabel"
Show the code
saveRDS(object = physeq, file="physeq.rds")
Show the code
# count number of samples per conditionsample_data(physeq) %>%as_tibble() %>% dplyr::count(Time)
# A tibble: 5 × 2
Time n
<ord> <int>
1 T0 9
2 T3 54
3 T7 54
4 T14 9
5 T28 9
Show the code

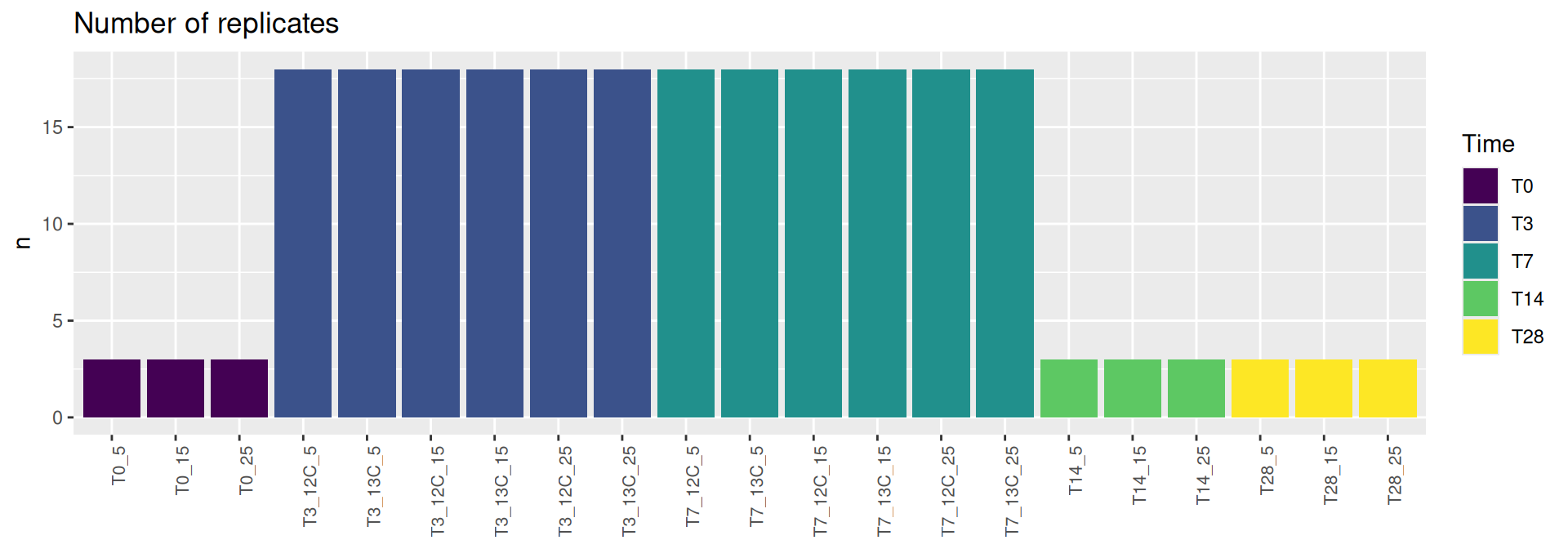

sample_data(physeq) %>%as_tibble() %>% dplyr::add_count(Time, Temperature) %>% dplyr::select(Time, Temperature, Group, n) %>%distinct() %>%ggplot(., aes(x = Group, y = n, fill = Time)) +geom_bar(stat ="identity") +labs(title="Number of replicates", y ="n") +theme(axis.title.x =element_blank(),axis.text.x =element_text(angle =90, size =8, hjust =1))

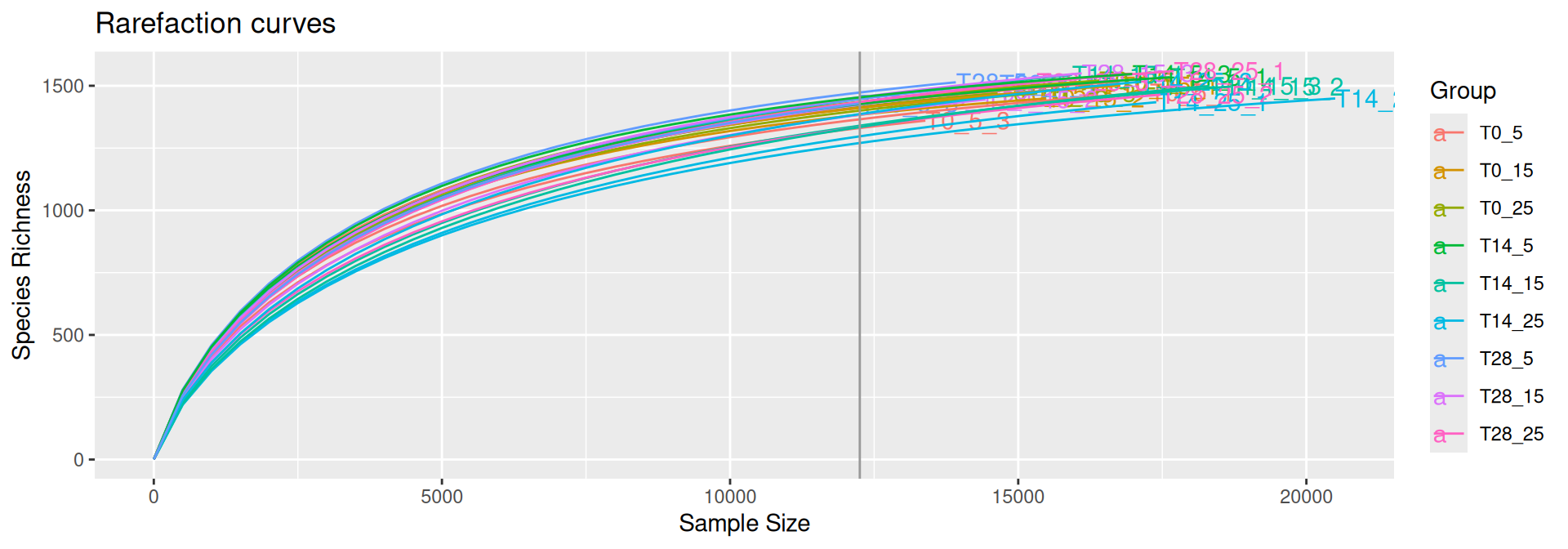

The common practice for comparing microbiome samples of different library sizes is to reduce the size of the larger samples using rarefaction until they contain the same number of reads as the smallest sample. The rarefaction curves show the species richness (i.e. number of species) against the library size and the vertical grey line indicates the smallest sample’s size. Each curve indicates when the sampling depth is sufficient to achieve an acceptable number of species discoveries and when increasing the depth leads to the discovery of rarer species. Rarefied data are used to estimate and compare alpha and beta diversity across samples.

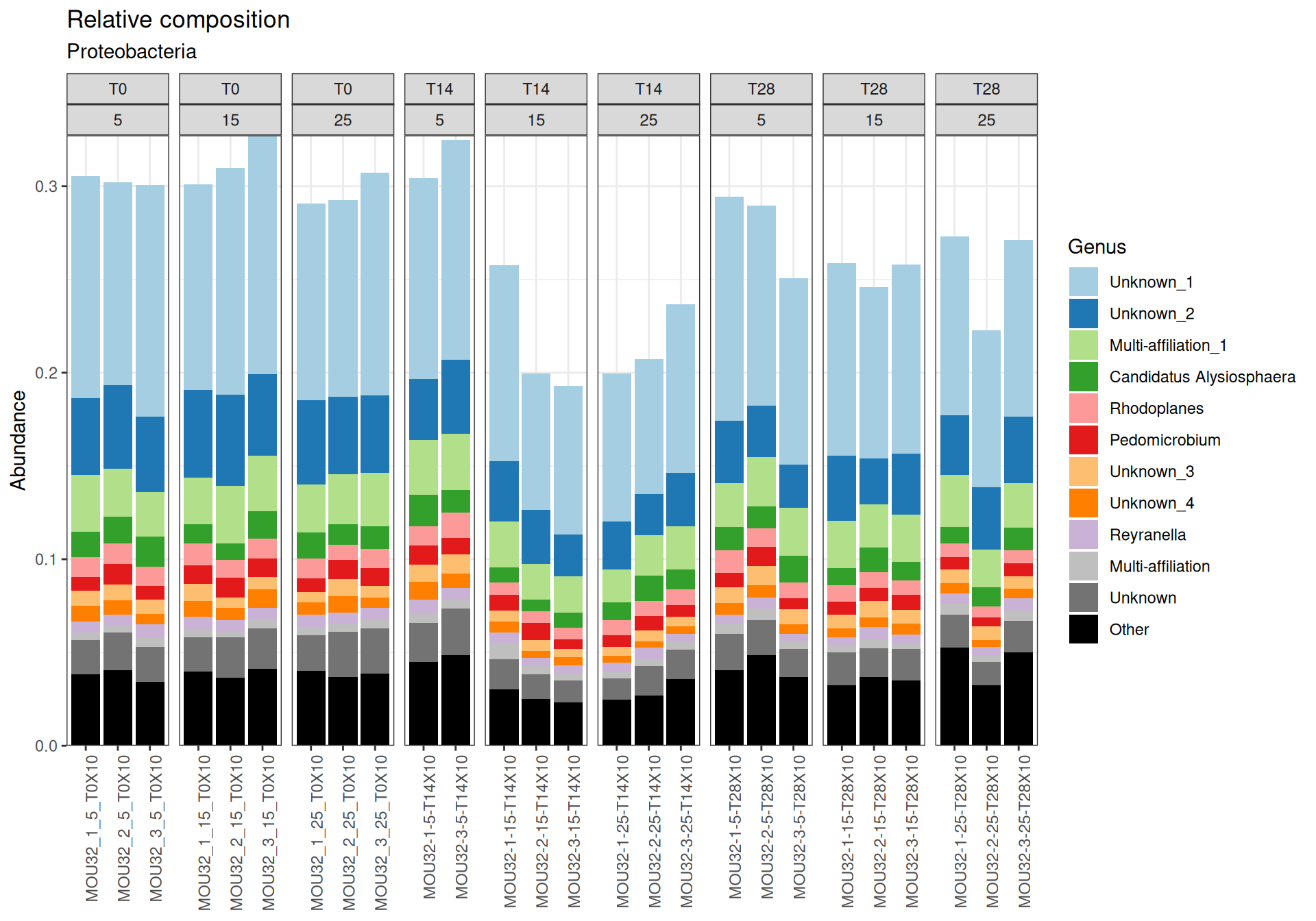

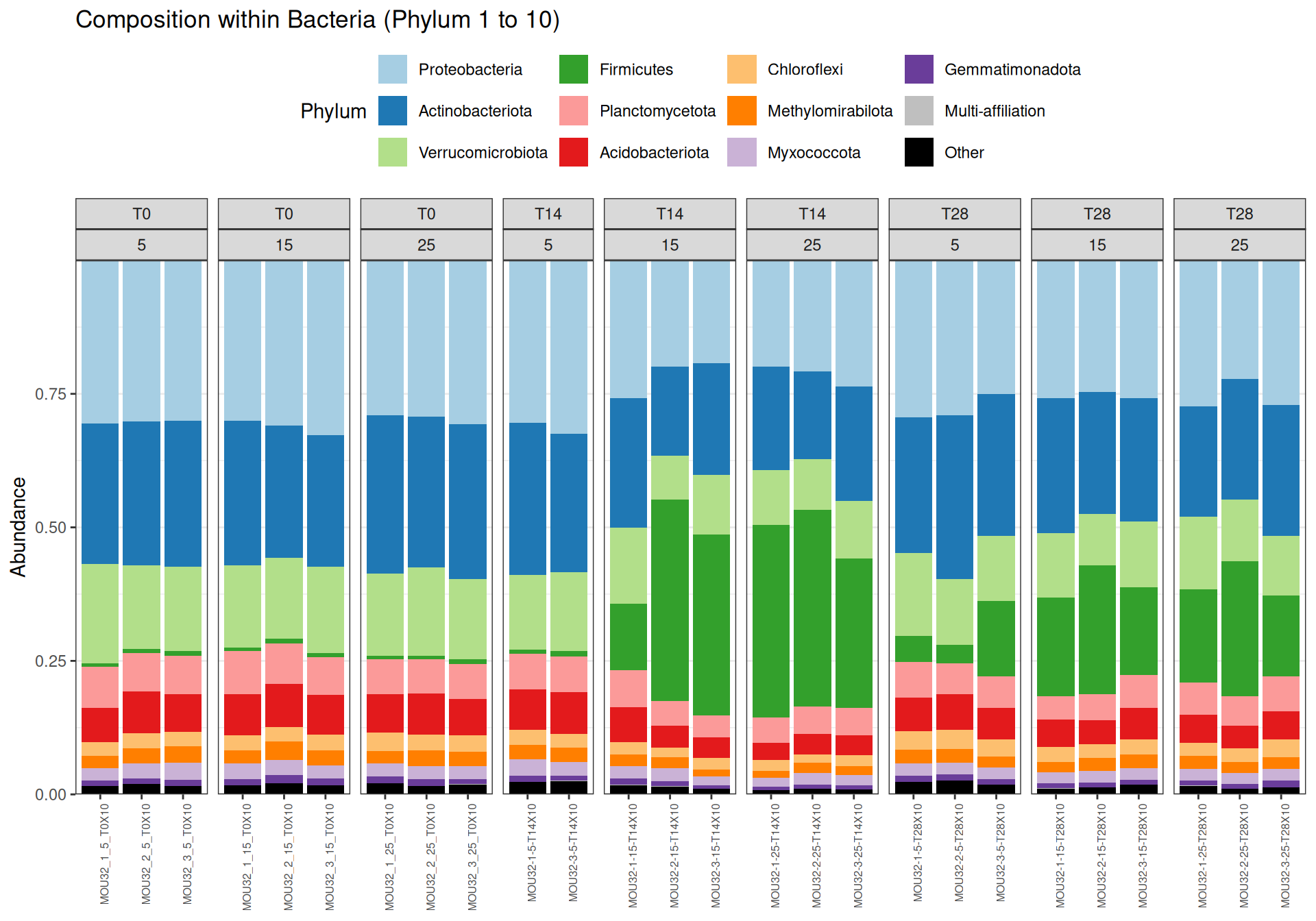

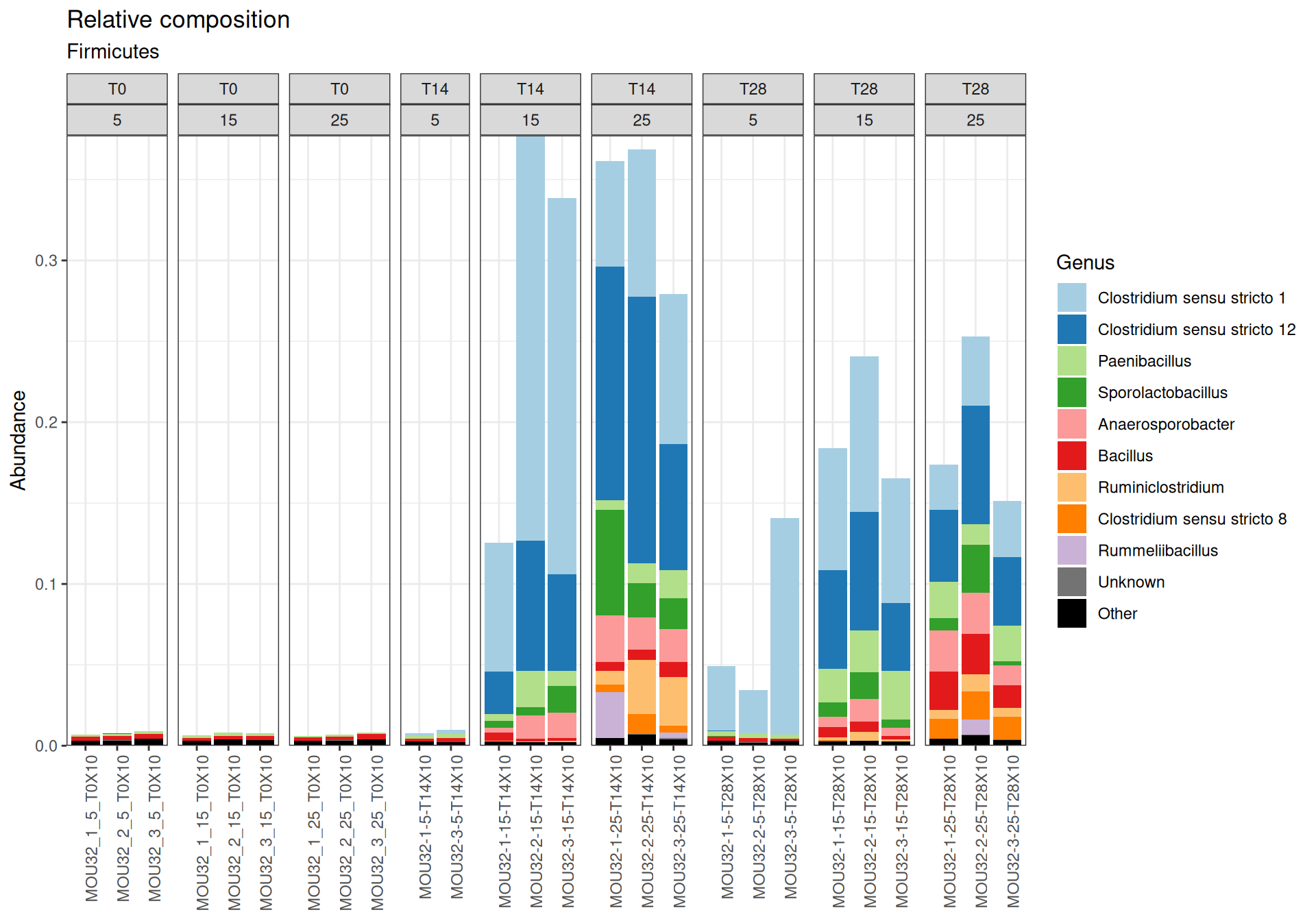

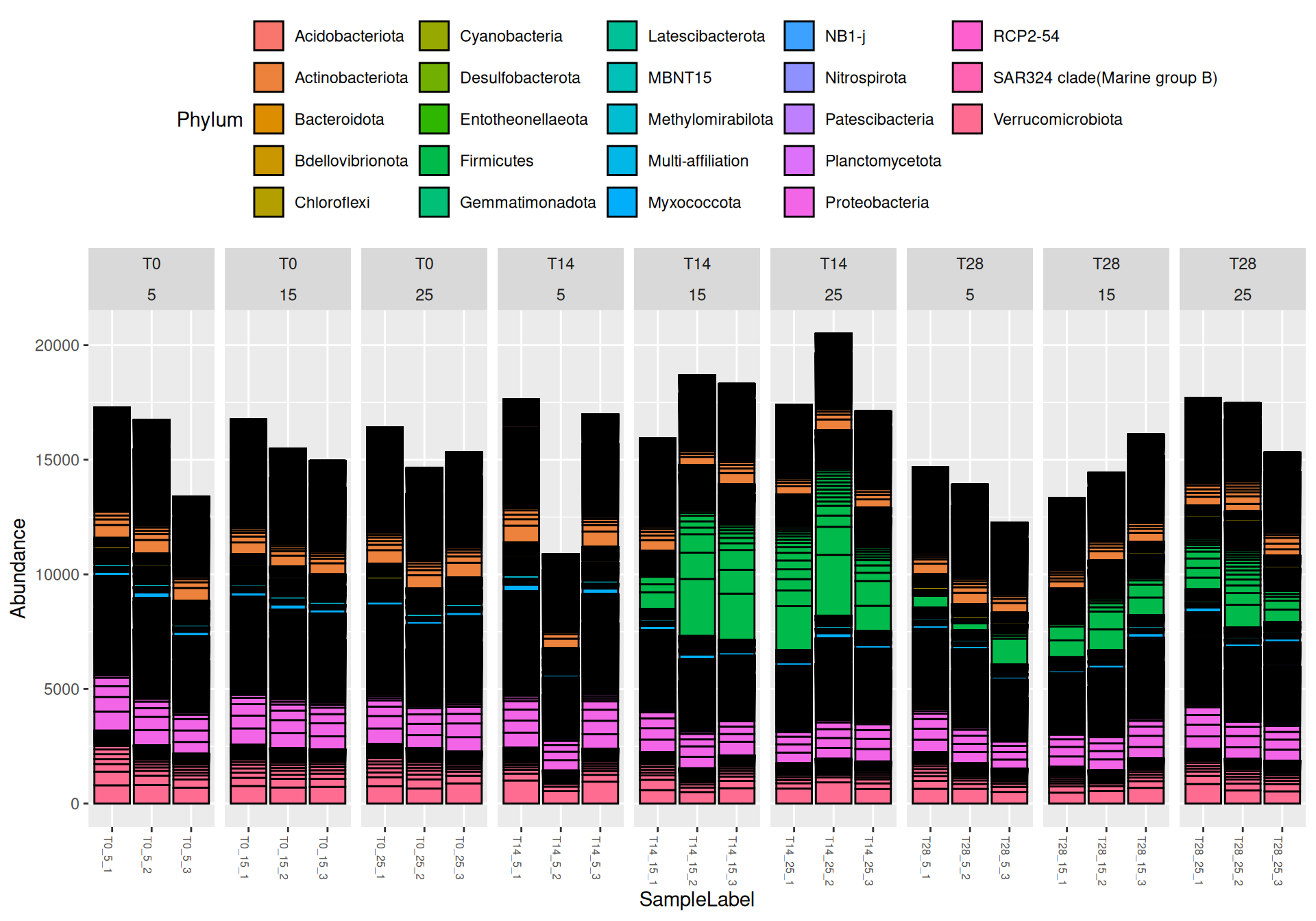

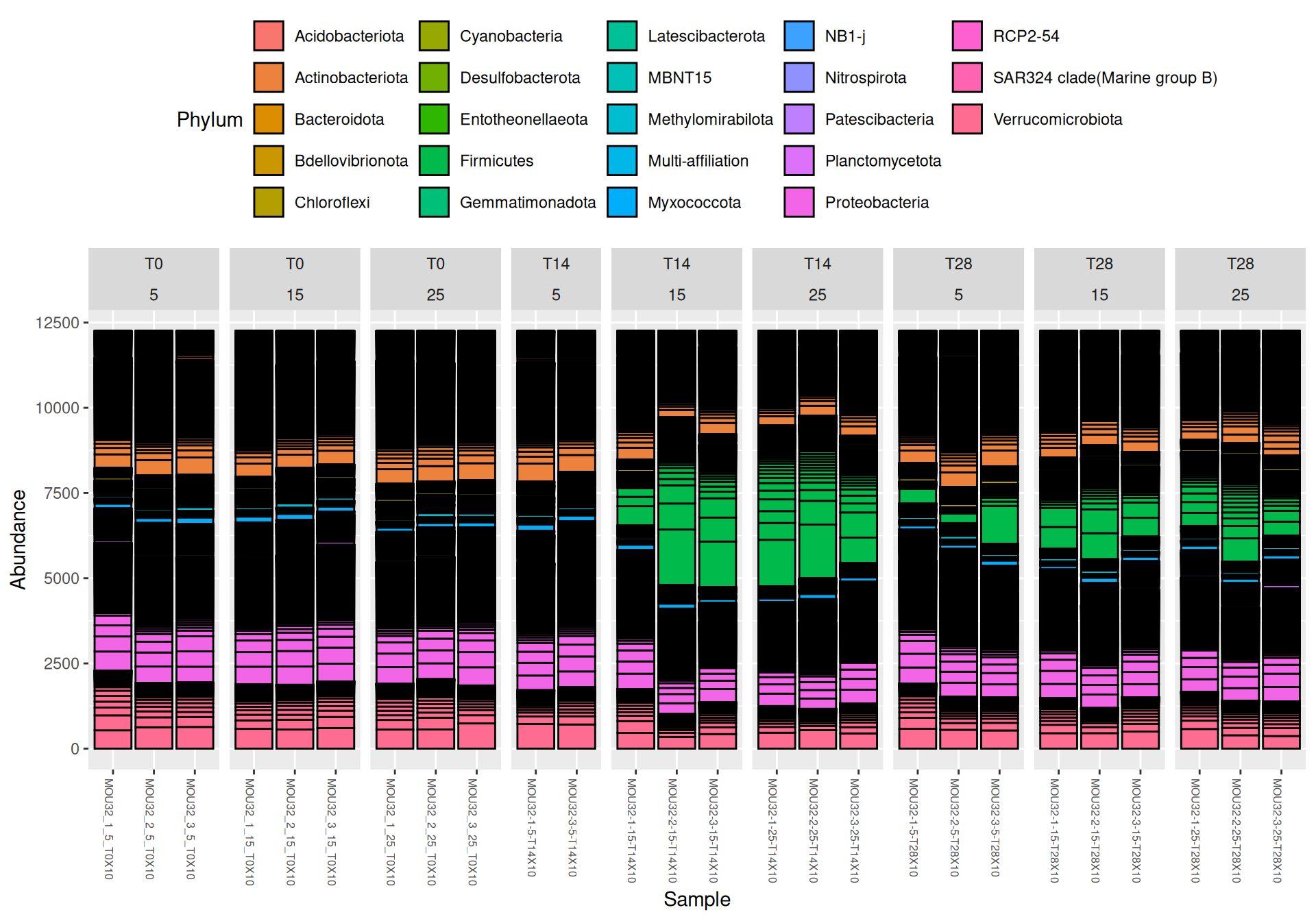

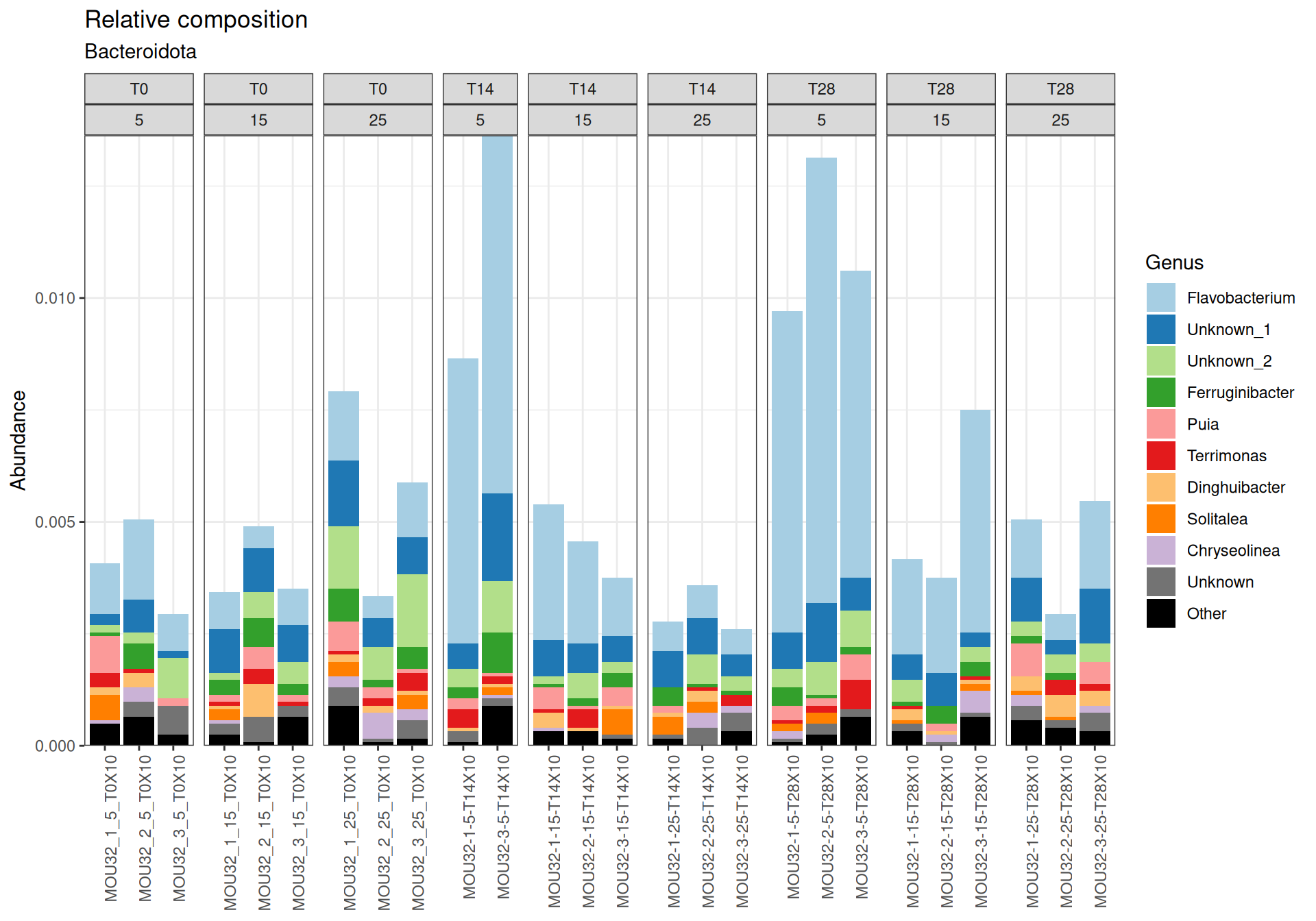

Actinobacteriota and Proteobacteria are dominants in major samples. Firmicutes appear mainly at Time > T14 and Temperature > 15. Bacteroidota are few abundants in absence of Glucose and are dominated by Flavobacterium genus.
Problematic taxa
taxa Kingdom Phylum Class Order
Cluster_209 Cluster_209 Bacteria Bacteroidota Bacteroidia Chitinophagales
Cluster_388 Cluster_388 Bacteria Bacteroidota Bacteroidia Cytophagales
Family Genus rank
Cluster_209 Chitinophagaceae Unknown 2
Cluster_388 Microscillaceae Unknown 3
Alpha-diversity
Alpha-diversity

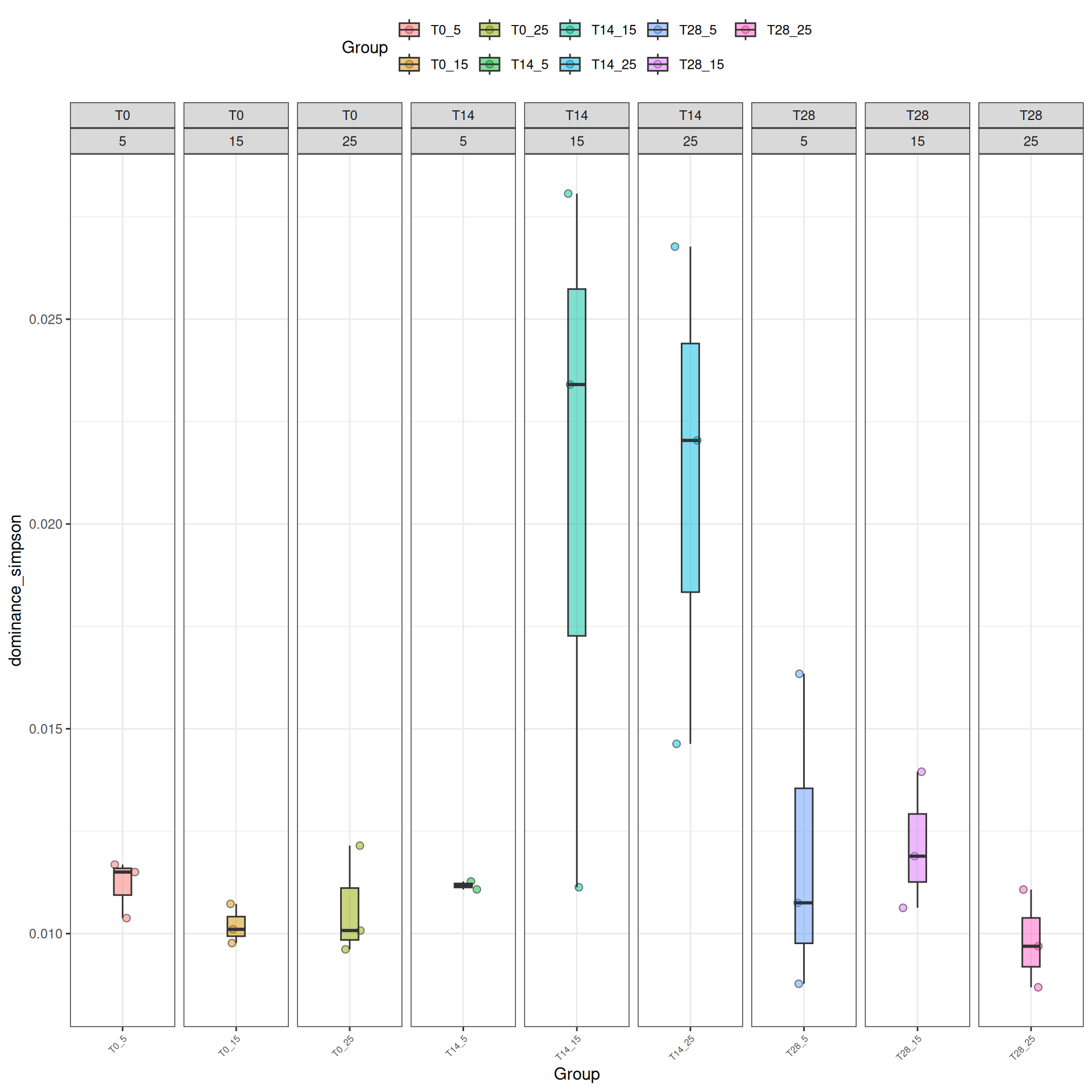

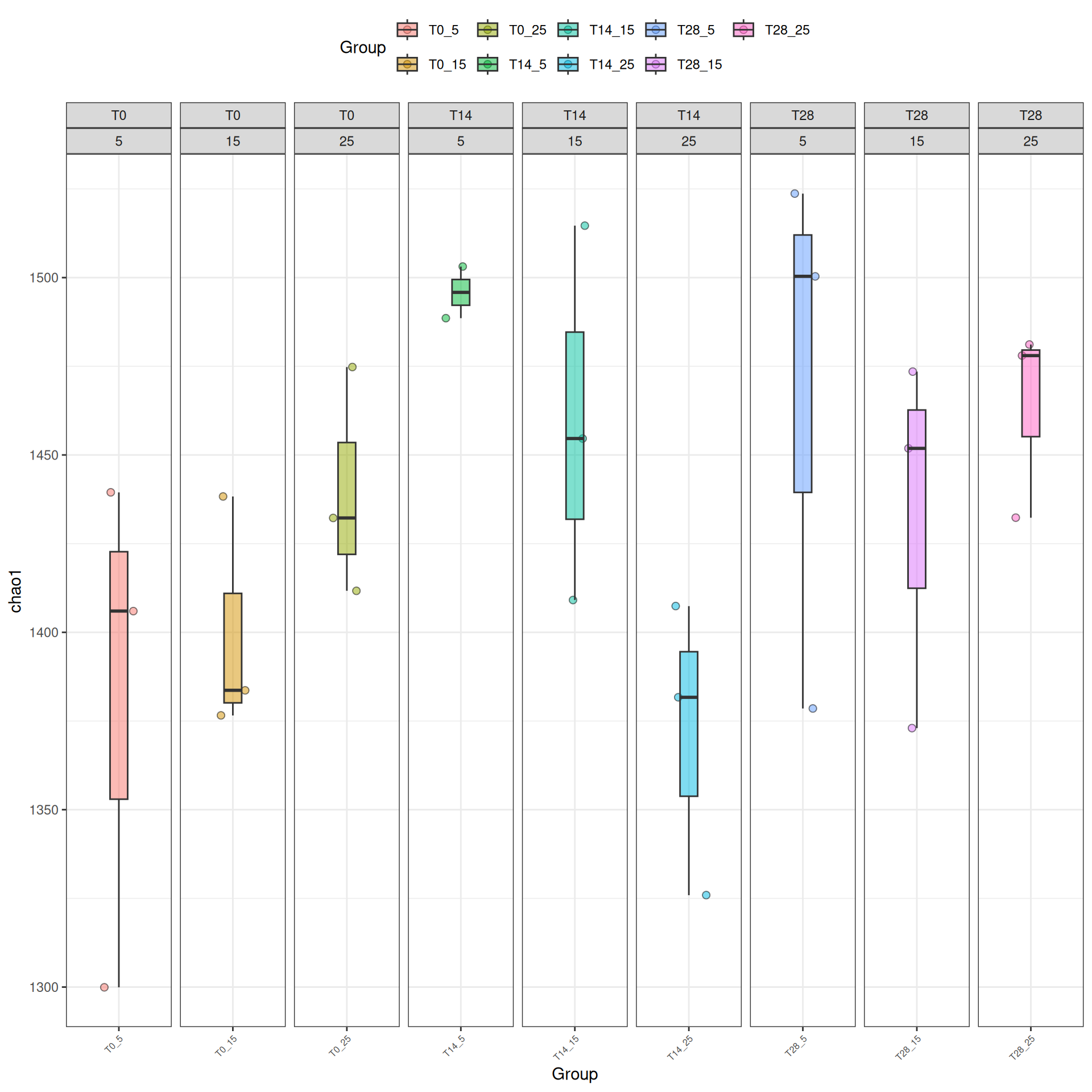

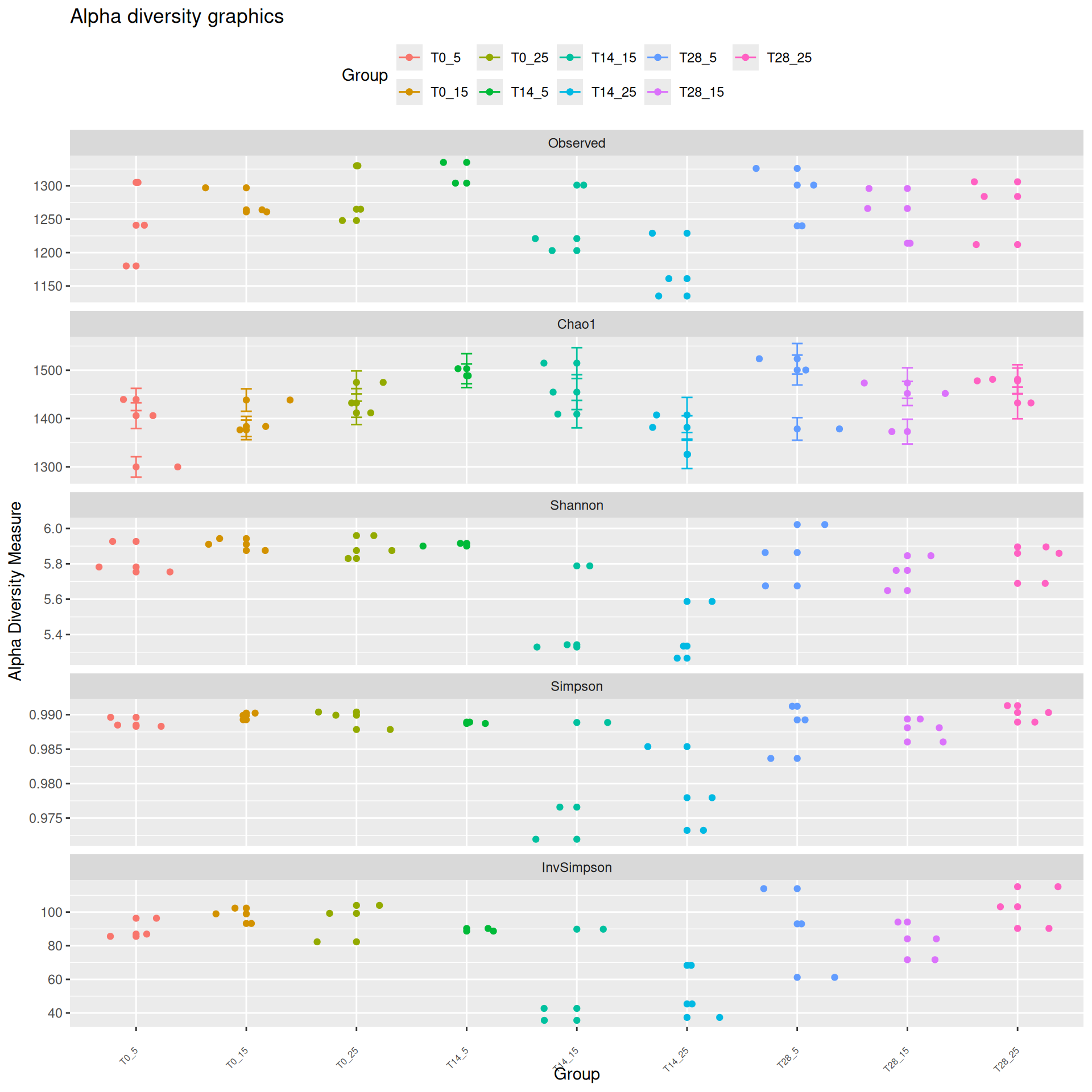

Alpha-diversity represents diversity within a sample (i.e. ecosystem). The most commonly used measures of diversity are : Observed, Chao1, Shannon, and Simpson. Richness (i.e. Observed) is simply the number of species present in the sample and Shannon is another measure based on species richness. Chao1 is an estimator of the number of species applied to the presence/absence data for each species. The Simpson index gives more importance to abundant species.

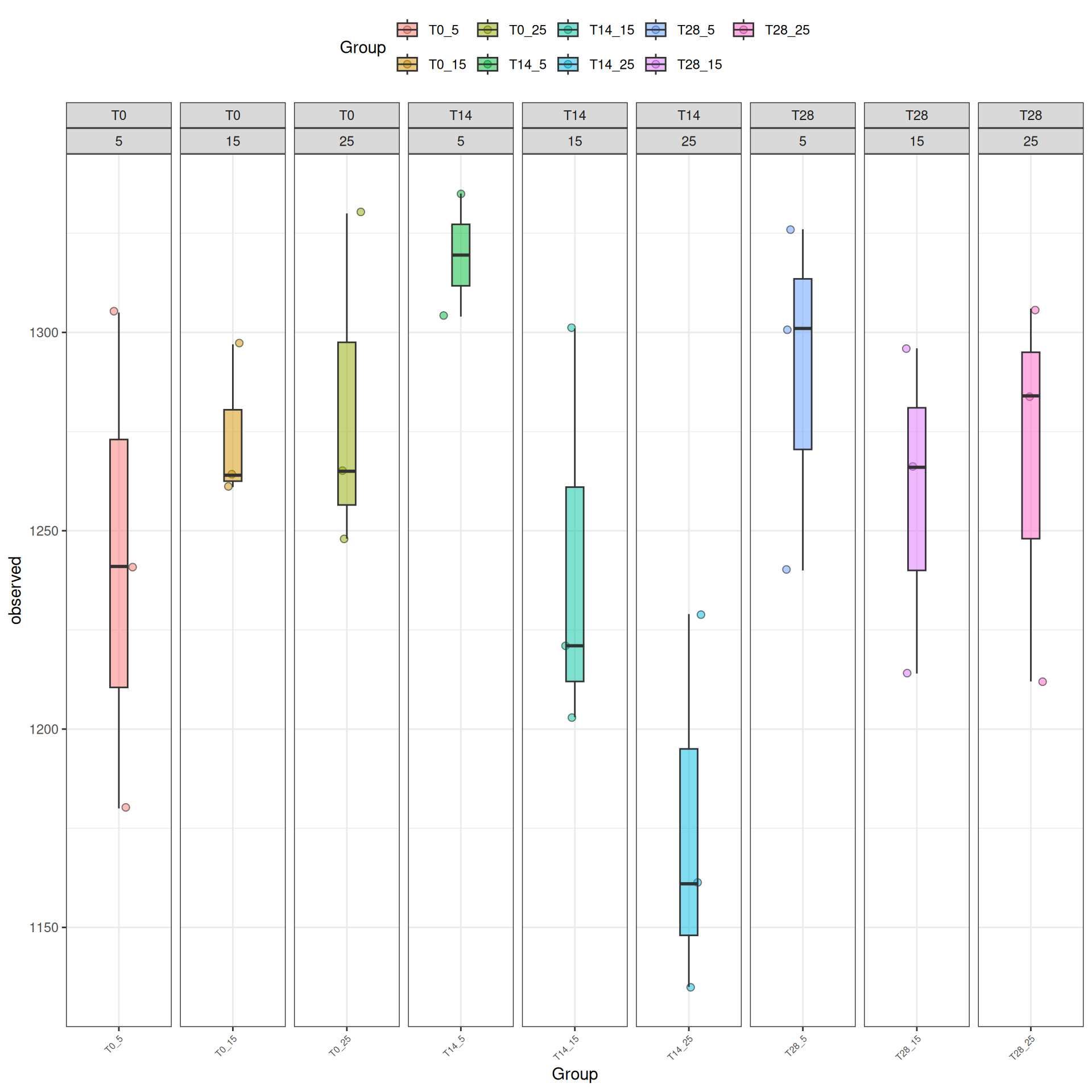

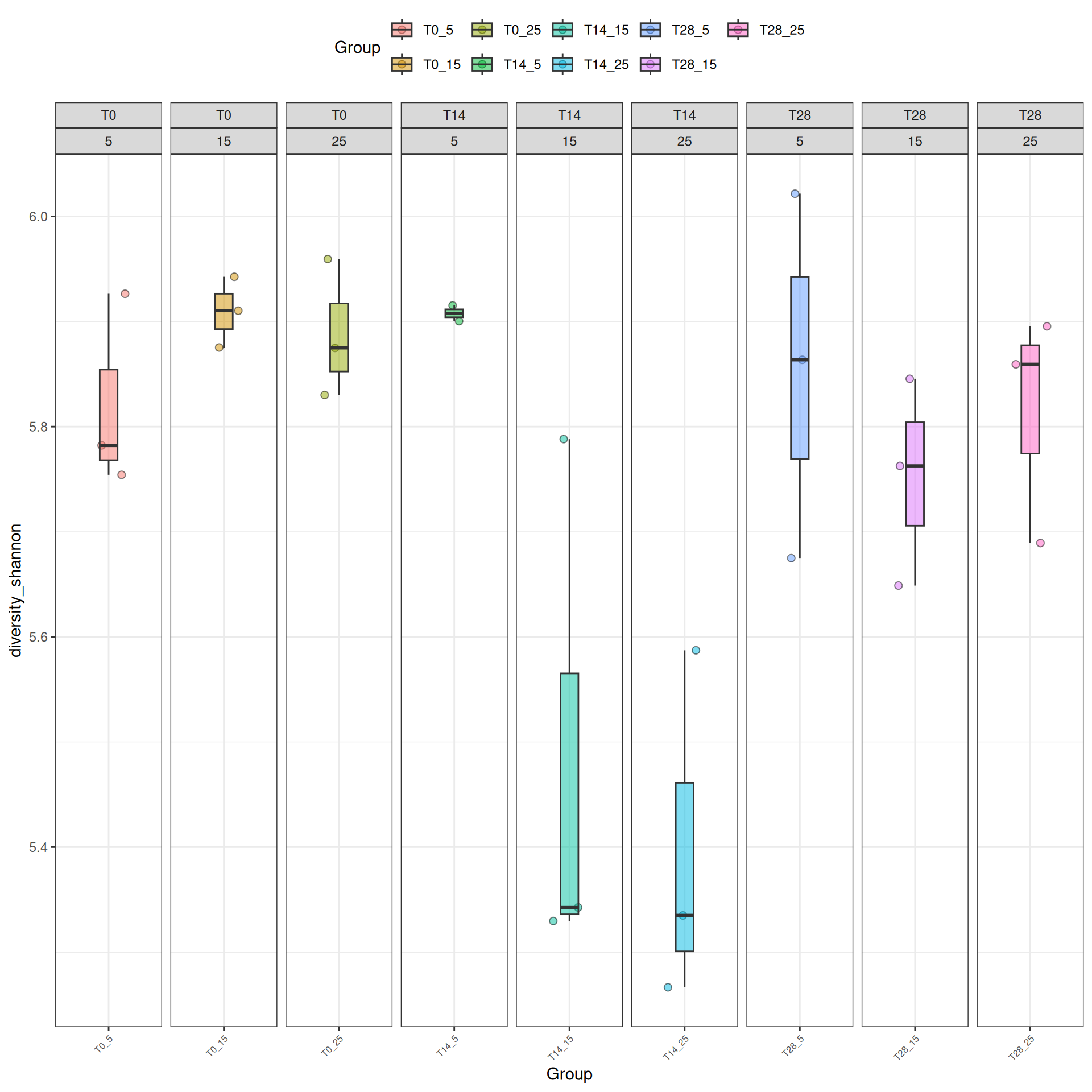

The alpha diversities are quite similar between samples at any time except T14. The observed diversity fall from Temperature 15 and 25 at T14.
Alpha-diversity - statistical tests
We calculated the alpha-diversity indices and combined them with covariates from experimental design. We tested the influence Time and Temperature on Observed alpha-diversity.
We tested the influence Time and Temperature on Observed alpha-diversity.
Show the code
alphadiv.lm <-lm(Observed ~ Time + Temperature, data = div_data)anova(alphadiv.lm)
Analysis of Variance Table
Response: Observed
Df Sum Sq Mean Sq F value Pr(>F)
Time 2 6027 3013.5 1.0694 0.3612
Temperature 2 5270 2634.8 0.9350 0.4083
Residuals 21 59177 2818.0
Show the code

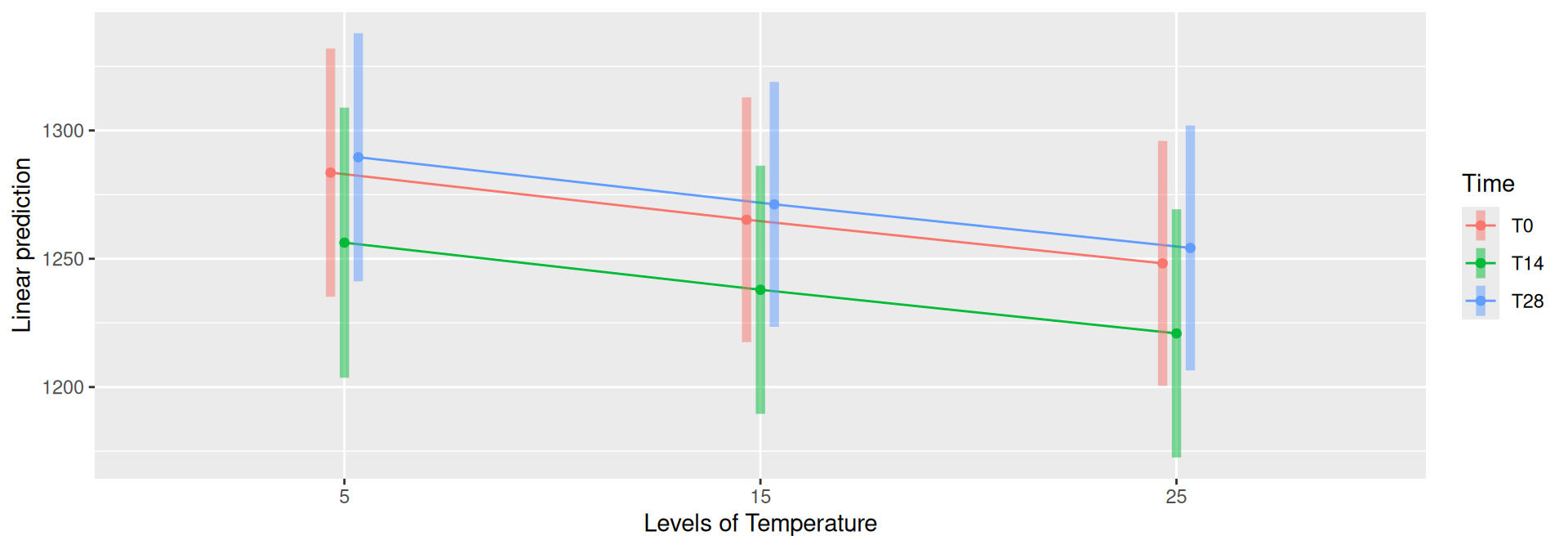

# interaction visualisationemmip(alphadiv.lm, Time ~ Temperature, CIs =TRUE)
Results
Richness (Observed diversity) is not significantly different by Time and Temperature.
Beta-diversity
The dissimilarity between samples based on taxonomic composition is calculated with one of these Beta diversities: Bray-Curtis, Unweighted and weighted Unifrac, Jaccard index. The Jaccard index uses presence/absence information only whereas UniFrac integrates information from the phylogenetic tree.
# Mahendra's functionmy_plot <-function(variable1, variable2, physeq = mydata_rare) { .plot <-function(distance) { .distance <- distance_list[[distance]] %>%as.matrix() %>%`[`(sample_names(physeq), sample_names(physeq)) %>%as.dist() p <-plot_ordination(physeq,ordinate(physeq, method ="MDS", distance = .distance),color = variable1, shape = variable2) +scale_color_brewer(palette ="Paired") +theme(legend.position ="none") +ggtitle(distance)# print(p) } plots <-lapply(names(distance_list), .plot) legend <- cowplot::get_legend(plots[[1]] +theme(legend.position ="bottom")) pgrid <- cowplot::plot_grid(plotlist = plots) cowplot::plot_grid(pgrid, legend, ncol =1, rel_heights =c(1, .1))}# Mahendra's function# used own color's palette and shapemy_plot2 <-function(variable1, variable2, physeq = mydata_rare, shapeval, colorpal) { .plot <-function(distance) { .distance <- distance_list[[distance]] %>%as.matrix() %>%`[`(sample_names(physeq), sample_names(physeq)) %>%as.dist() p <-plot_ordination(physeq,ordinate(physeq, method ="MDS", distance = .distance),color = variable1, shape = variable2) +scale_shape_manual(values = shapeval) +scale_color_manual(name = colorpal$name,labels = colorpal$labels,values = colorpal$values ) +theme(legend.position ="none") +ggtitle(distance)# print(p) } plots <-lapply(names(distance_list), .plot) legend <- cowplot::get_legend(plots[[1]] +theme(legend.position ="bottom")) pgrid <- cowplot::plot_grid(plotlist = plots) cowplot::plot_grid(pgrid, legend, ncol =1, rel_heights =c(1, .1))}# Mahendra's function# used own color's palette and shapemy_pcoa_with_arrows2 <-function(physeq = mydata_rare, variable1, variable2, shapeval, colorpal) {# select samples of interest where all samples were used to calculate the distances between samples # dist.jac is previously calculated with all samples of the study#dist.c <- phyloseq::distance(physeq, "jaccard") dist.c <- dist.bc %>%as.matrix() %>%`[`(sample_names(physeq), sample_names(physeq)) %>%as.dist() ord.c <-ordinate(physeq, "MDS", dist.bc) p <-plot_ordination(physeq, ord.c)# ## Build arrow data plot_data <- p$data arrow_data <- plot_data %>%group_by(pick({{variable2}}, {{variable1}})) %>%arrange({{variable1}}) %>%mutate(xend = Axis.1, xstart =lag(xend),yend = Axis.2, ystart =lag(yend) )## Plot with arrows p +aes(shape = .data[[ variable2 ]], color = .data[[ variable1 ]]) +scale_shape_manual(values = shapeval) +scale_color_manual(name = colorpal$name,labels = colorpal$labels,values = colorpal$values) +theme_bw() +geom_segment(data = arrow_data,aes(x = xstart, y = ystart, xend = xend, yend = yend),size =0.8, linetype ="3131",# arrow = arrow(length=unit(0.1,"inches")),show.legend =FALSE) +geom_point(size =3) +theme(legend.position ="bottom")}
Show the code
# MDS plot for samples of interests # from distance calculated with all samples of the complete study# used https://colorbrewer2.org/#type=qualitative&scheme=Paired&n=12# Time_pal <- list(# name = "Time",# labels = c("T0", "T3", "T7", "T14", "T28"),# values = c("#1f78b4", "#b2df8a", "#984ea3", "#ff7f00", "#a65628")# )Time_pal <-list(name ="Time",labels =c("T0","T14", "T28"),values =c("#1f78b4", "#ff7f00", "#a65628"))Time_Gluc_pal <-list(name ="Time_Gluc",labels =c("T0", "T3_12C", "T3_13C", "T7_12C", "T7_13C", "T14", "T28"),values =c("#9ecae1", "#b2df8a", "#33a02c", "#cab2d6", "#984ea3", "#4292c6", "#08519c"))Temperature_shape <-list(values =c(16,17,15))my_plot2(variable1 ="Time",variable2 ="Temperature",physeq = physeq_rare,shapeval = Temperature_shape$values,colorpal = Time_pal )
Show the code
# MDS plot for samples of interests # from distance calculated with all samples of the complete study# used https://colorbrewer2.org/#type=qualitative&scheme=Paired&n=12p <-my_pcoa_with_arrows2(variable1 ="Time",variable2 ="Temperature",physeq = physeq_rare,shapeval = Temperature_shape$values,colorpal = Time_pal)p

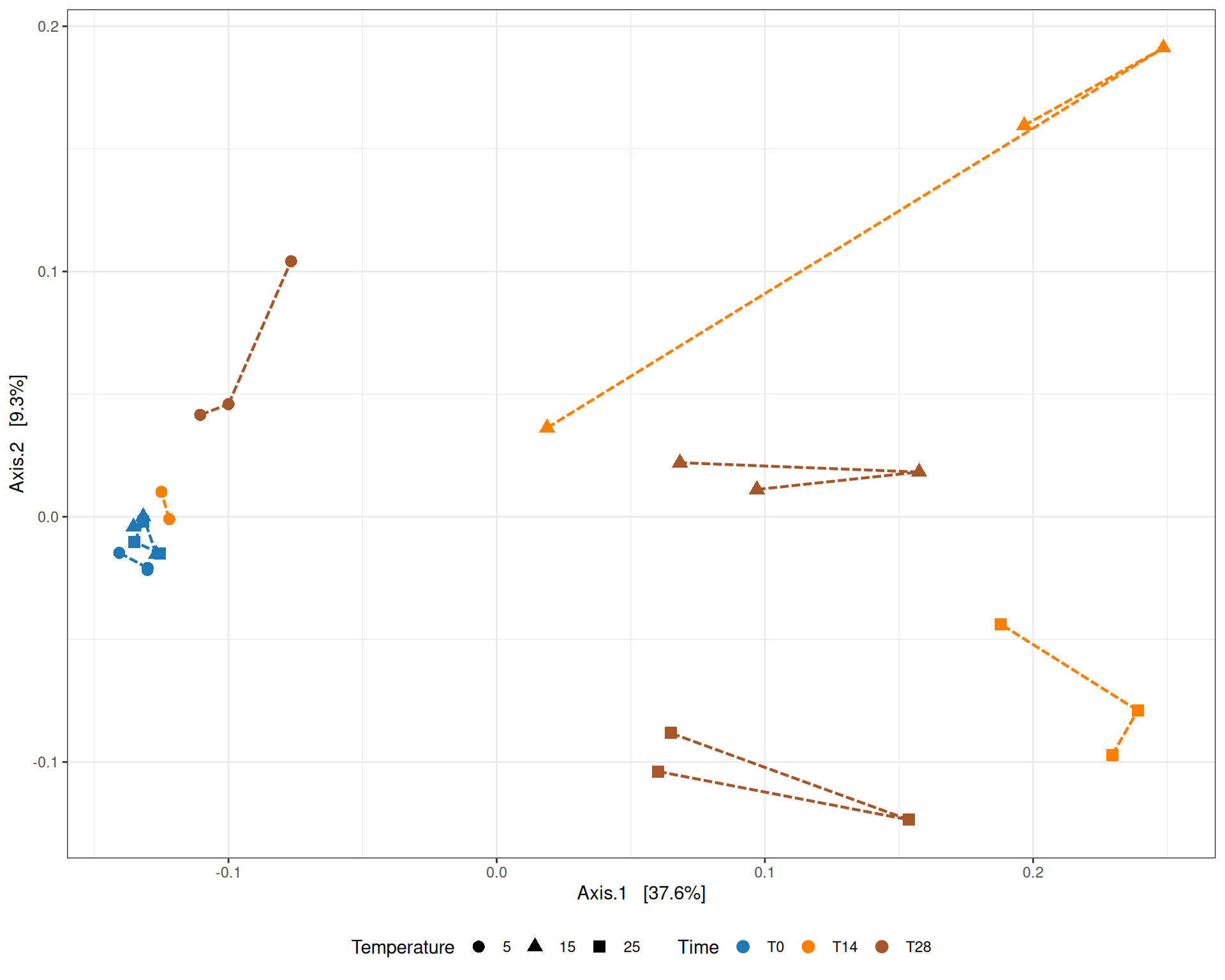

MDS plot

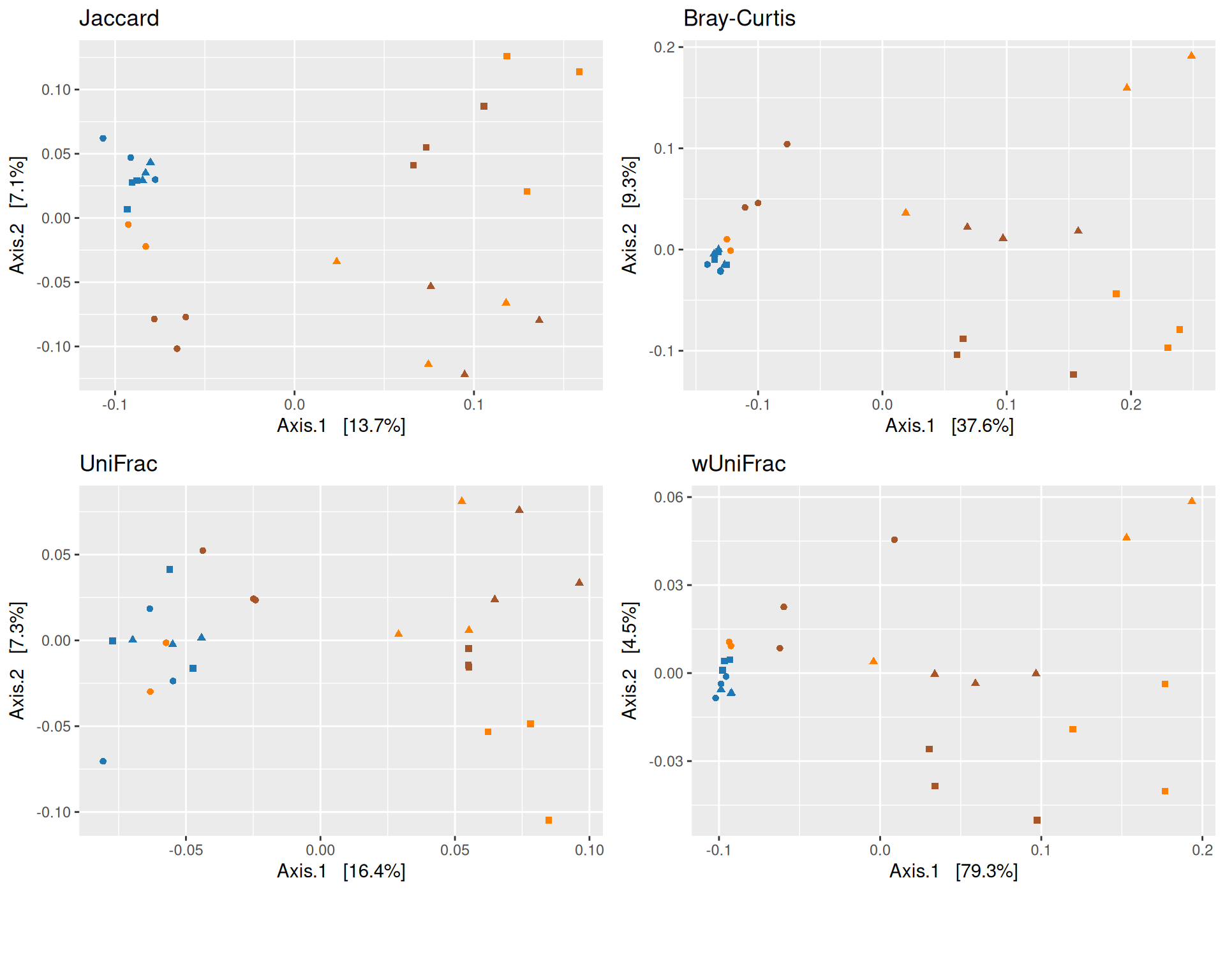

The Multidimensional scaling (MDS / PCoA) based on Bray-Curtis distance showed that samples were distributed according to Time and Temperature variables on the first two axes. The replicates samples T0, T14 and T28 are homogeneous, close to each other.
Beta-diversity - Tests
Show the code
metadata <-sample_data(physeq_rare) %>%as("data.frame")# assess significance for each term sequentially from first to last# importance of the order of the introduced factors in the modelmodel <- vegan::adonis2(dist.bc ~ Time*Temperature, data = metadata, permutations =9999, by ="terms")print(model)
Permutation test for adonis under reduced model
Terms added sequentially (first to last)
Permutation: free
Number of permutations: 9999
vegan::adonis2(formula = dist.bc ~ Time * Temperature, data = metadata, permutations = 9999, by = "terms")
Df SumOfSqs R2 F Pr(>F)
Time 2 0.35165 0.24857 5.5264 0.0001 ***
Temperature 2 0.24348 0.17211 3.8264 0.0001 ***
Time:Temperature 4 0.27870 0.19701 2.1900 0.0028 **
Residual 17 0.54086 0.38232
Total 25 1.41469 1.00000
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Results
The change in microbiota composition measured by the Bray-Curtis Beta diversity is significantly different between Time, and Temperature and also between the levels of the interaction factor Time:Temperature at 0.05 significance level. The influence of the factors differs between ecosystems.
Show the code
par(mar =c(3, 0, 2, 0), cex =0.6)phyloseq.extended::plot_clust(physeq_rare, dist ="bray", method ="ward.D2", color ="Group",title ="Clustering of samples (Bray-Curtis + Ward)")
Results
Hierarchical clustering based on the Bray-Curtis dissimilarity and the Ward aggregation criterion shows that sample composition is not entirely structured by Time, Glucose and Temperature.

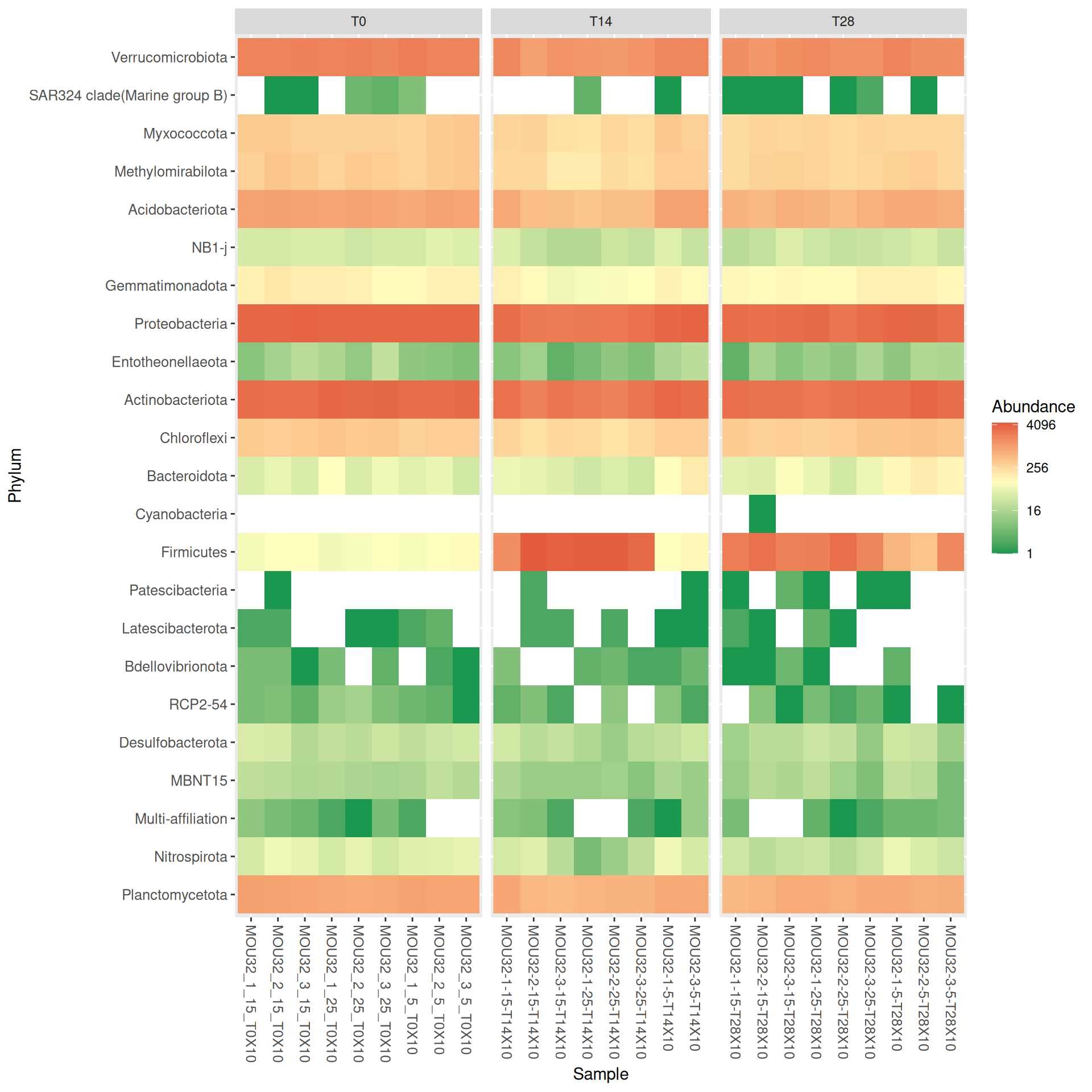

At Phylum taxonomic levels, we created heatmap plot using ordination methods to organize the rows.
Family
Show the code
# method = NULL if not ordinationp <- phyloseq::plot_heatmap(tax_glom(physeq_rare, taxrank="Phylum"), method ="MDS",distance ="bray",sample.order="SampleLabel", # not ordination# taxa.order = "Family",taxa.label ="Phylum") +facet_grid(~ Time_Gluc, scales ="free_x", space ="free_x") +scale_fill_gradient2(low ="#1a9850", mid ="#ffffbf", high ="#d73027",na.value ="white", trans = scales::log_trans(4),midpoint =log(100, base =4))p
1. McMurdie PJ, Holmes S. Phyloseq: An r package for reproducible interactive analysis and graphics of microbiome census data. PloS one. 2013;8:e61217.
